Datasol India | GRAPHIC & VIDEO SOLUTIONS

Back

GRAPHIC & VIDEO SOLUTIONS

Rugged video modules / Capture / Process / Encode / Display

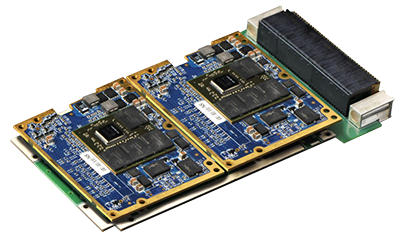

MXM video graphics cards commercial & Military Grade Options
Up to 2560 CUDA® cores
Up to 4 Independent Display
Up to 16 GB GDDR5 memory with NVIDIA GPUDirect™ DMA
Chip-down WOLF design and fabrication meets military and aerospace specifications

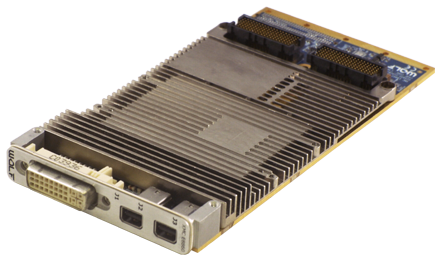

XMC video graphics boards can include an embedded NVIDIA GPU, AMD GPU and/or Xilinx FPGA.

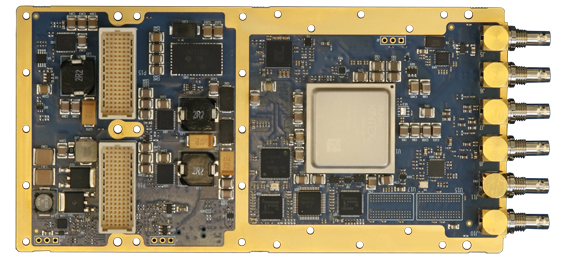

Frame Grabber eXtreme 2 (FGX2) capture, convert, transmit engine
Two CoaXPress inputs, up to CXP-6
Two 12G-SDI inputs and up to four 12G-SDI outputs
Up to three analog inputs, one VGA output, and two HD (1080p60) DP inputs
Up to four HD-SDI or two 3G-SDI inputs
Up to four HD-SDI or two 3G-SDI outputs
Up to four analog inputs and two analog outputs
Low operating power, 12 to 25W

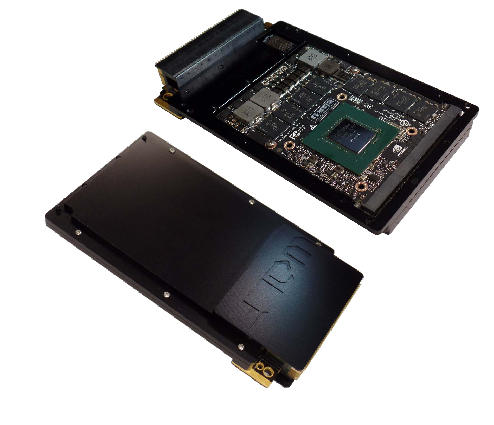

3U VPX boards include advanced NVIDIA Quadro GPUs, AMD Radeon GPUs, and Xilinx FPGAs, providing video output, image and data processing, video encoding to HEVC and AVC, and video capture
Up to 6.2 TFLOPS, GPGPU Engine
Up to 4 independent DisplayPort 1.4 outputs
Up to 16 GB GDDR5 memory with NVIDIA GPUDirect™ DMA
Up to Operating power configurable hard cap: 40 – 100W• NVIDIA Volta GPU with 512 CUDA cores & 64
NVIDIA Volta GPU with 512 CUDA cores & 64 Tensor cores

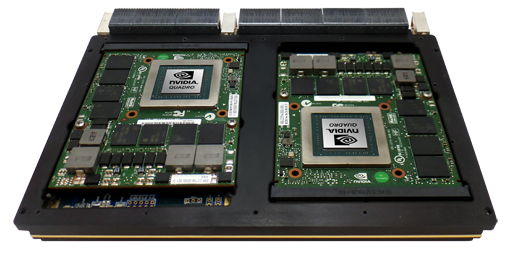

6U VPX modules include advanced NVIDIA Quadro GPUs and Xilinx FPGAs, providing video output, image and data processing, video encoding to HEVC and AVC, and video capture.
17.4 TFLOPS GPGPU Engine
Chip-down WOLF design and fabrication meets military and aerospace specifications
Up to 8 independent DisplayPort 1.4 outputs
32 GB GDDR5 memory with NVIDIA GPUDirect™ DMA technology
Operating power configurable hard cap: 80 – 260W
